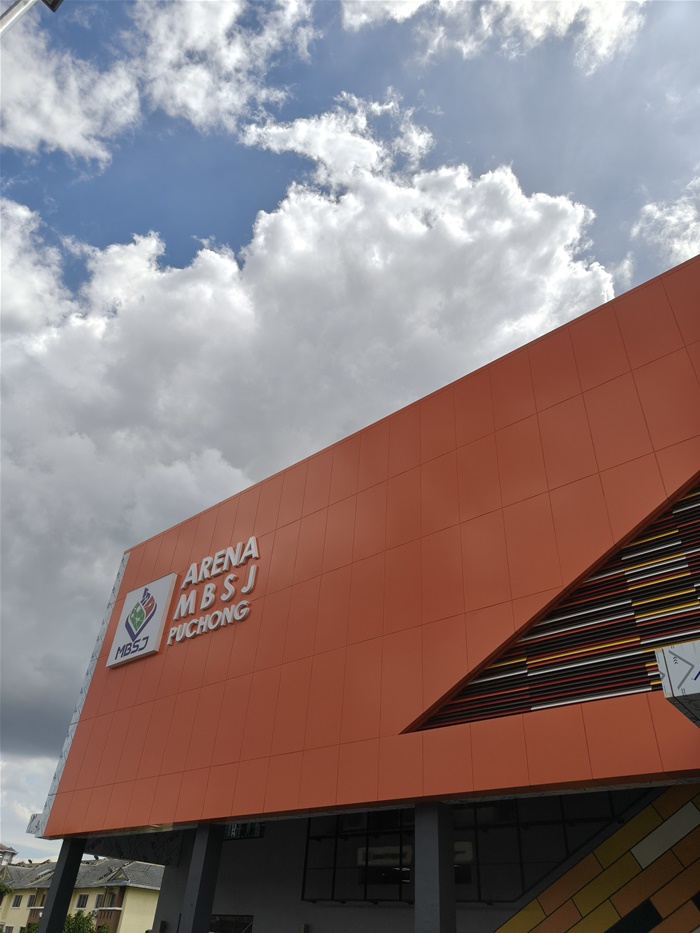

Kompleks Sukan MBSJ Puchong stands as a premier sports hub in Selangor, hosting high-energy athletic tournaments, community activities, and public events. To support dynamic multi-zone requirements and ensure seamless acoustic clarity, a state-of-the-art audio reinforcement, background music, emergency public address (PA), and life-safety fireman intercom infrastructure was specified and successfully integrated across the sports complex.

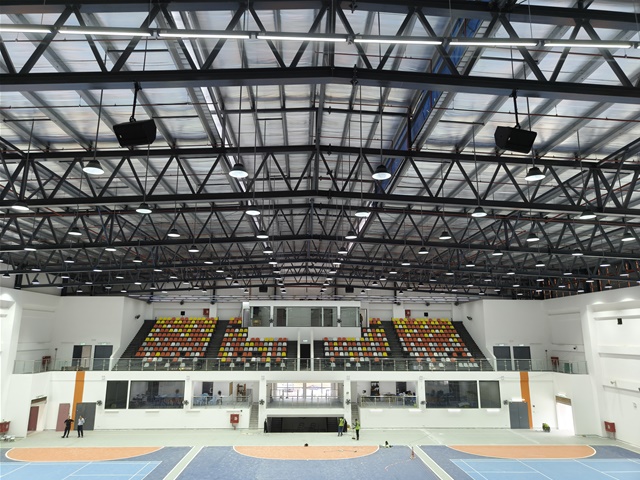

For live events and main arena presentations, the sound reinforcement setup is powered by a high-performance audio engine centered on the industry-standard Behringer X-32 32-channel digital mixer. Robust dynamic coverage is delivered via IVA RX-15MK2 15-inch 300W full-range speakers driven by high-efficiency IVA TPM-2.7 power amplifiers, alongside Behringer CE-500D active speakers. Performers and speakers enjoy seamless mobility and absolute voice clarity through IVA Pro-UD2 AD COMPACT V wireless dual-channel systems, complemented by Behringer SL-85S handheld wired microphones, premium KADAS cables, and EMIX EMXLR-PP architectural receptacle panels for flexible stage connection.

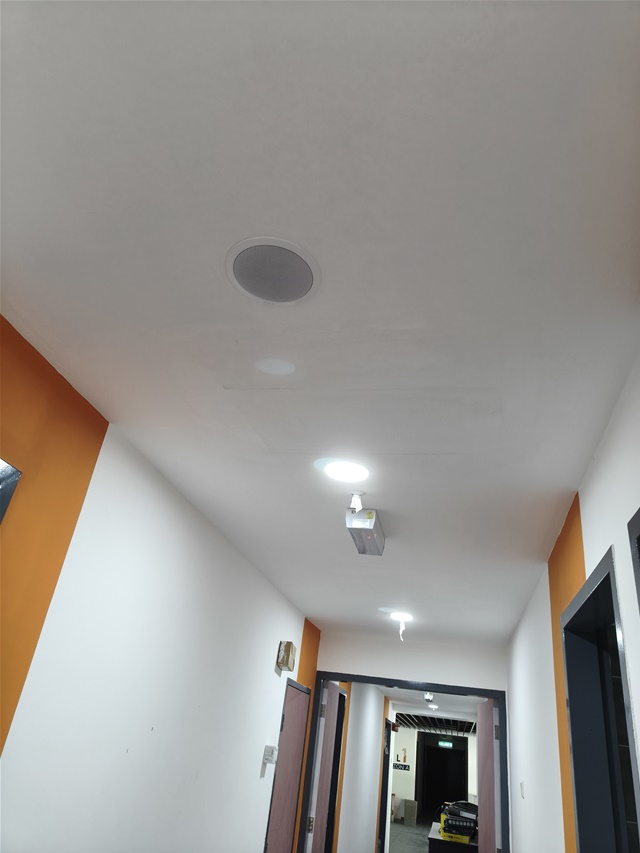

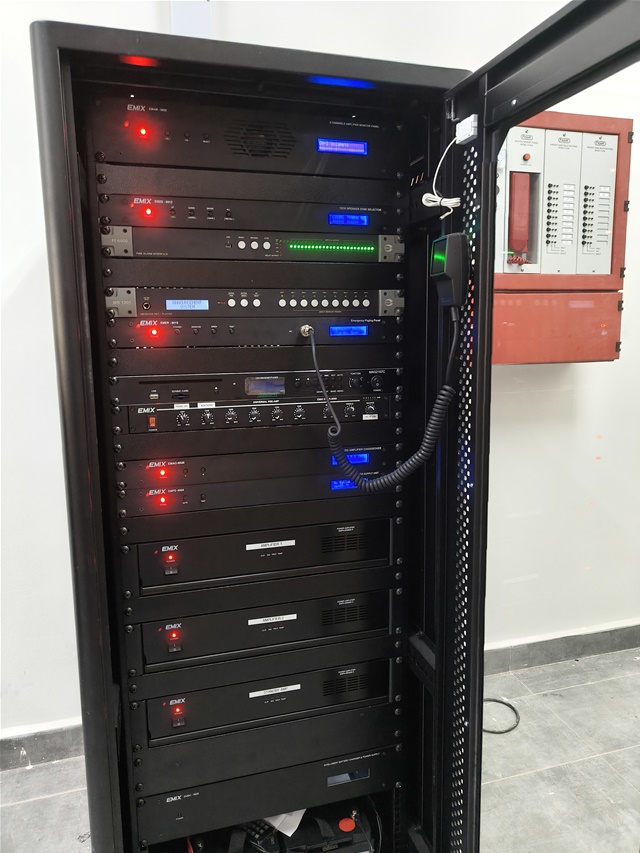

The venue’s everyday multi-zone background audio and general announcements are managed by a comprehensive EMIX public address system. Key central components include the EMIX EMPR-8009 pre-amp mixer, EMKP-8001 digital paging console, EMZS-8012 12-zone speaker selector, and heavy-duty EMIX EMPA-8500MKII power amplifiers backed by an automatic EMAC-8020 amplifier changeover unit. Audio sourcing is versatile and reliable, driven by the DSPPA MAG2107C CD/USB/Bluetooth player and an ALCAD FM102 antenna system. Sound dispersion across corridors, halls, and seating areas is achieved via EMIX EMCS-662 ceiling speakers, EMIX EMBS-3506 box speakers, high-output DSPPA DSP304H1 horn speakers, and localized EMV-6006 volume controls.

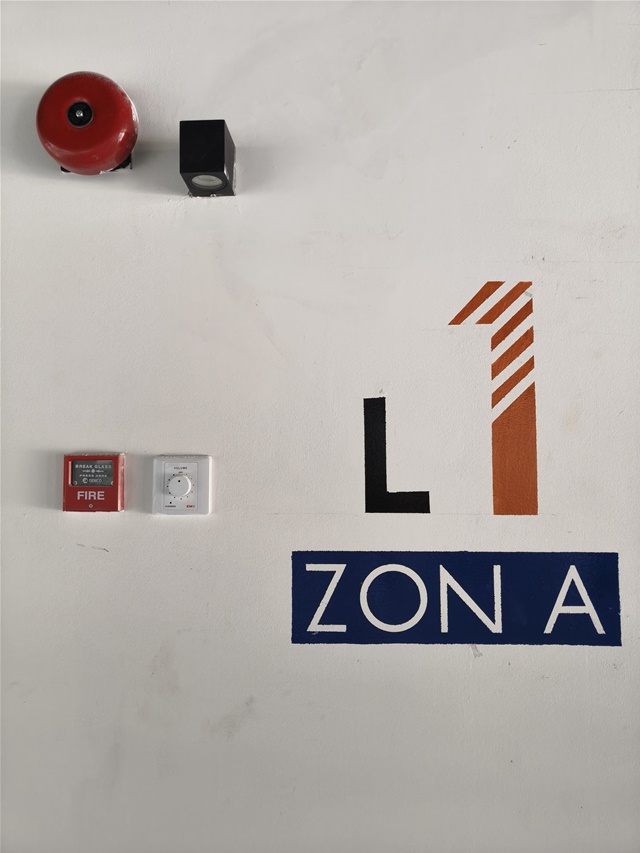

Safety and emergency readiness are critical for large-scale public facilities. The PA system seamlessly integrates with life-safety protocols through an Amperes FI6000MKII fire alarm interface and Amperes MR1301MKII automated message recorder/player. Furthermore, uninterrupted emergency operation is guaranteed by an integrated power backup infrastructure featuring an EMIX EMPS-8024 24V DC power supply, EMIX EMBC-8025 battery charger, and heavy-duty MSB 12V 100AH lead-acid batteries.

To complete the safety matrix, an independent emergency communications network was deployed utilizing a dedicated FICOM fireman intercom system. The system centers around a FICOM FI-818 Master Handset Panel, FI-828 Trouble Indicator Panel with dedicated battery charger, FI-838 Handset Zone Selector Panels, and a robust FI-WMC-4P wall-mounted console. Twelve FICOM FI-888 remote handsets are strategically installed throughout the complex for instant two-way emergency communication, backed by dedicated MSB MS12-12 24V DC battery power to maintain critical line integrity during emergencies.
