This restaurant and bar has 3 separate area for 3 different fusion foods and drinks. There are 2 private rooms to serve VIPs or larger group. They also have concern of the volume control mechanism due to the proximity of the bar to the residential area. The owner has a set of portable high power PA system which they plan to setup during special occasions. This portable setup need to be integrated to the background music system. There is also limitation of budget for the background music syetem so we would not be too crazy with the proposal.

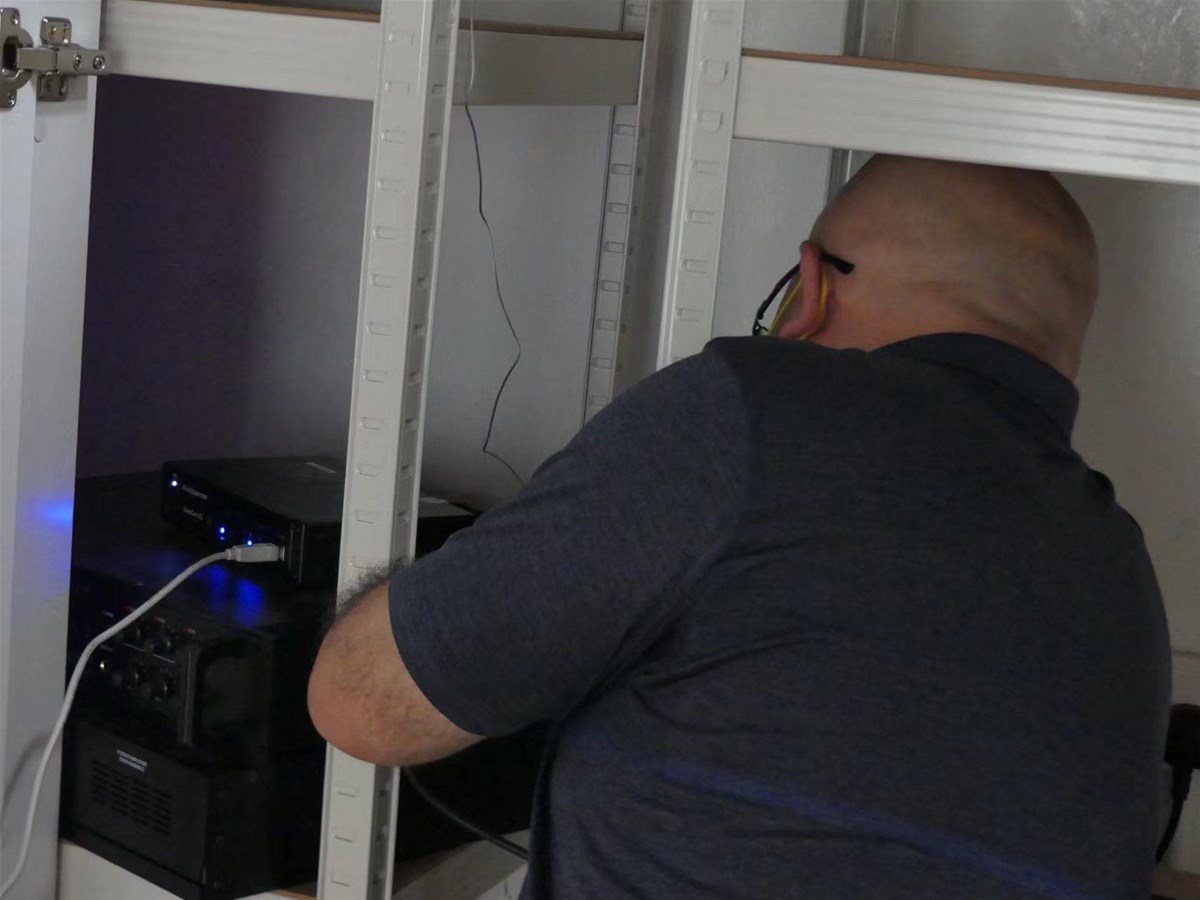

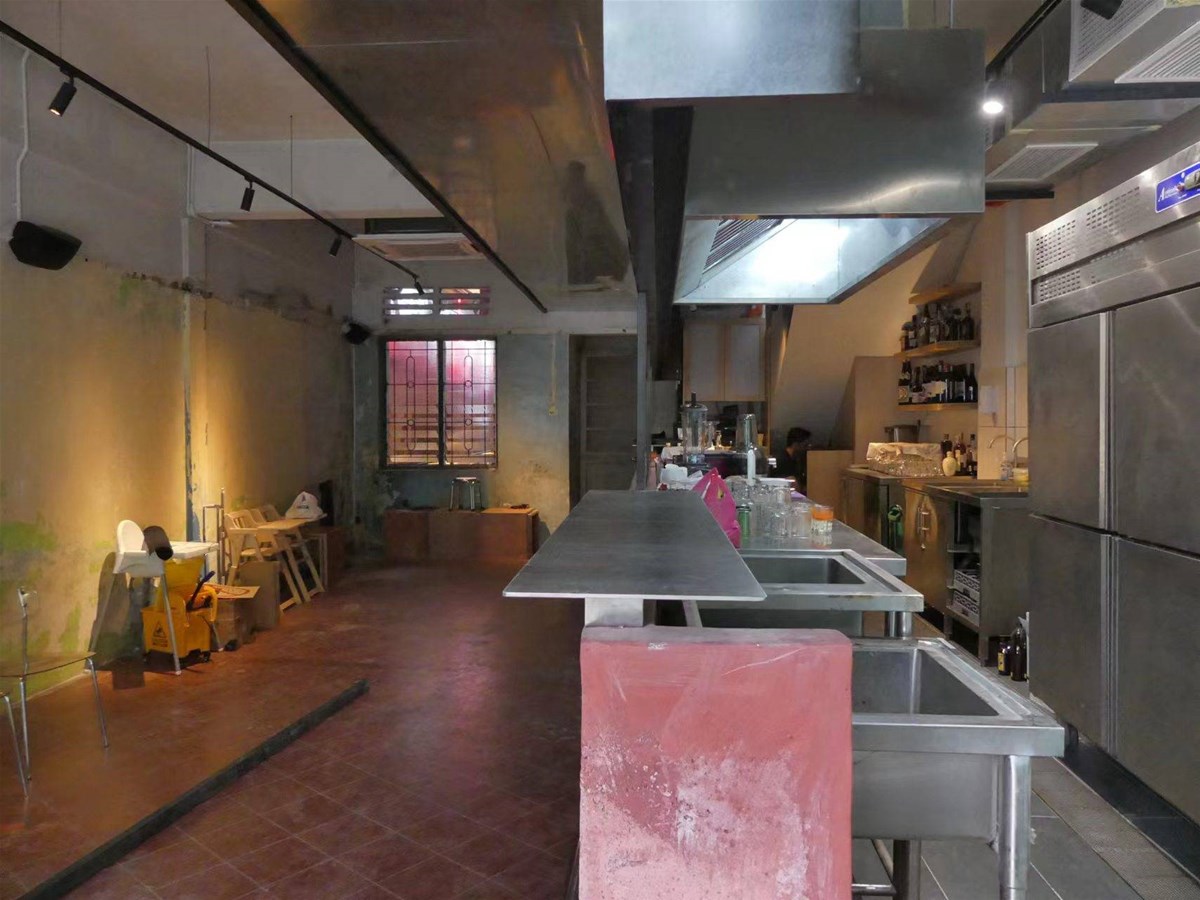

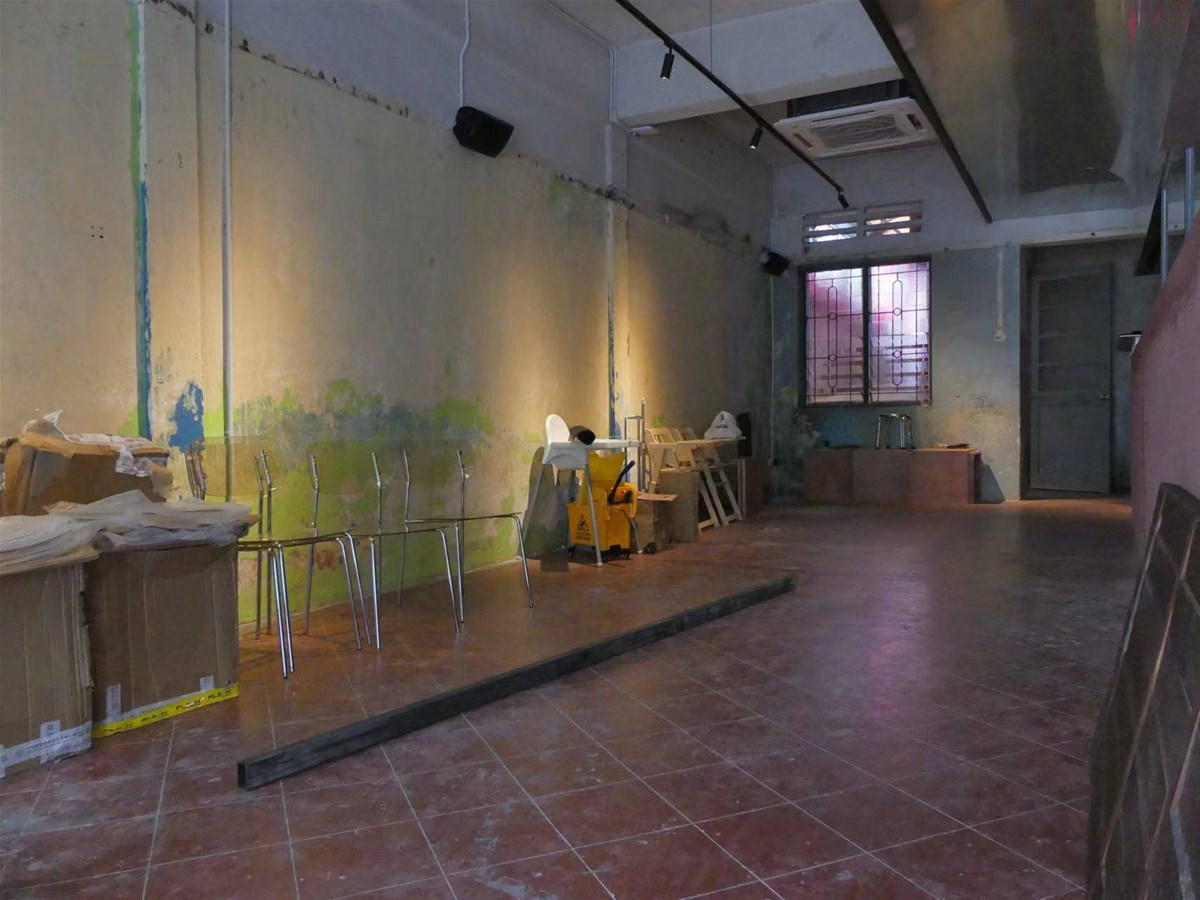

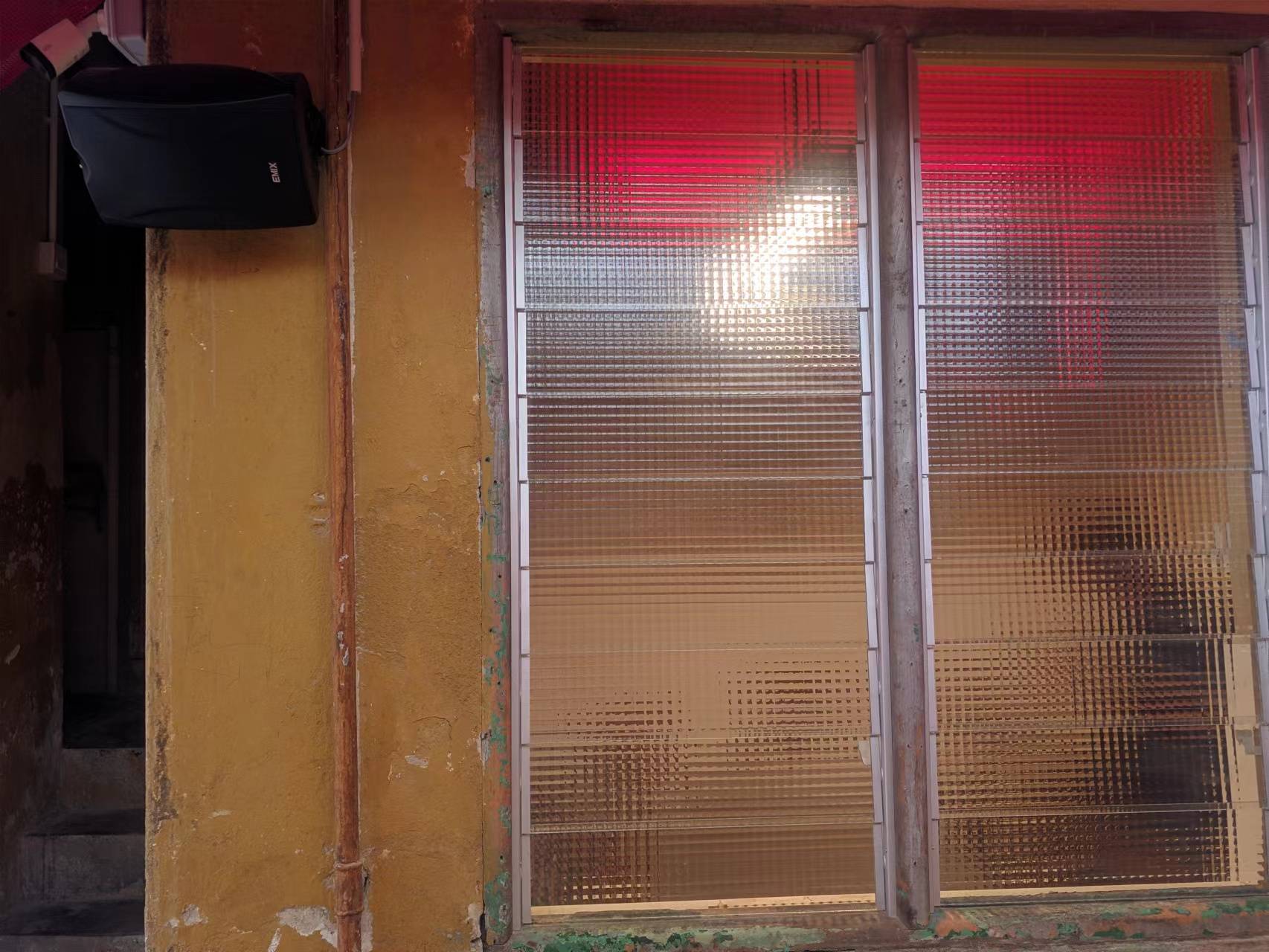

After fully understand their requirement, the team in AVEM go back into drawing board to come out an audio system. 12 units of box speaker to be distributed evenly among the floors and rooms. The distribution of speakers will be; 3 box speakers in the alleyway, 3 at the ground floor indoor, 1 at the front entrance, 3 at the first floor and 1 speaker each for the 2 private rooms. 3 zones system with individual volume control needed to ensure patronages feel confortable. To achieve this, zone mixing amplifier is used to ensure all zone can be controlled. The whole system is being controlled at one spot, which is at the corner on the first floor. We provide 50 Watt volume control for the two private rooms so the patronage able to tweak the volume accordingly. We also provide a 100 Watt volume control for the 3 speakers at the alleyway.
