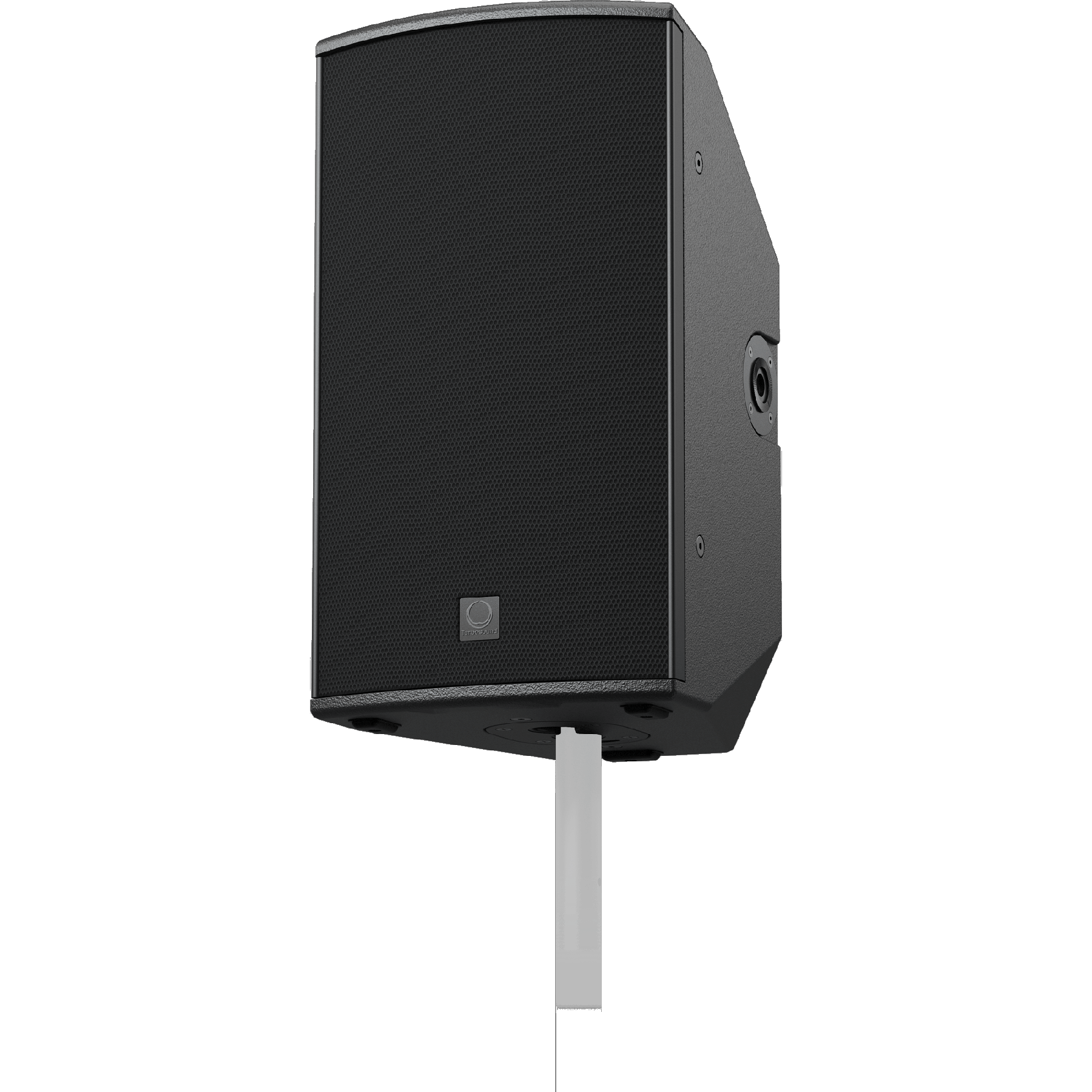

The 2-way full range TQ10 is a processed passive 1,600-Watt 10" loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Lab Gruppen powered loudspeaker management systems, the TQ10 provides optimal performance for FOH, sidefill and delay line applications


The TQ10 features an 10" neodymium low frequency driver with a low mass voice coil for improved transient response, and a titanium dome 1.4" neodymium high frequency compression driver mounted onto an 80° horizontal by 30° vertical rotatable exponential horn paired with a dendritic plane wave transformer (DPWT) waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure. The rear panel connector plate carries 2 x Neutrik speakON * NL4 connectors for input and link connections to additional enclosures.


Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8") plywood – and includes a rugged powder coated cloth wrapped perforated steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation, or for mounting. Optional flying yoke, swivel brackets, (each available separately). The TQ10 also features a dual 35 mm socket for standard pole mounting – plus integrated handle for convenient transport.

Tech Specs

• Frequency response (±3 dB)¹: 65 Hz - 20 Hz
• Frequency response (-10 dB)¹: 45 Hz - 20 kHz
• Nominal dispersion (@ -6 dB points): 80° H x 30° V
• Power handling (IEC)⁴: 400 W continuous,: 1600 W peak
• Sensitivity (1 W @ 1 m)2: 97 dB
• Maximum SPL3: 135 dB peak
• Impedance: 8 Ω
• Components: 1 x 10" (250 mm) LF driver
• 1 x 1.4" (34 mm) / 3" (72 mm) Voice coil HF compression driver
