Description

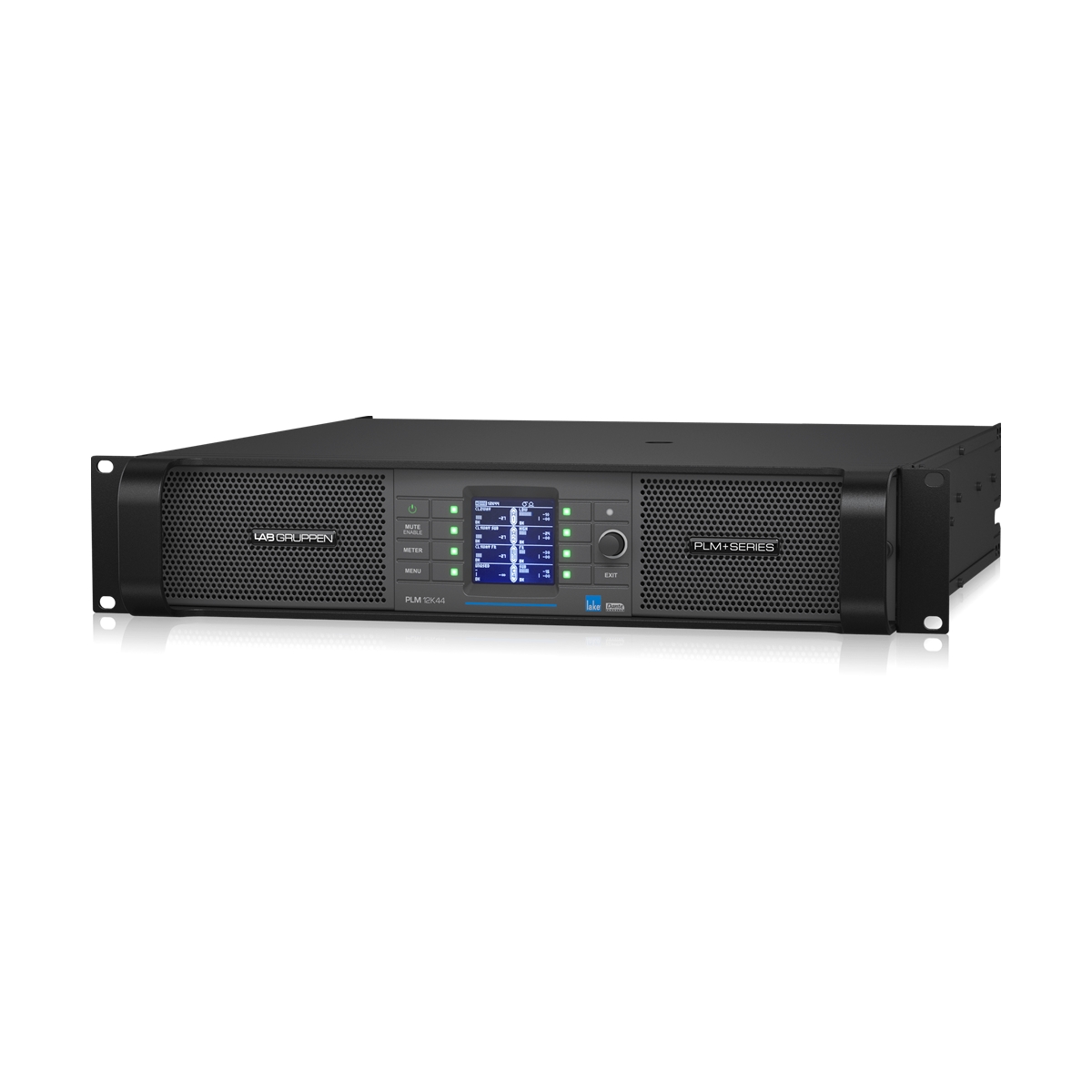

The PLM 12K44 Combines a 4-in, 4-out Configuration with Industry-standard Dante Networking, Setting the Benchmark for Powered Loudspeaker Management Systems.

The PLM 12K44 is the natural successor of the proven, road tested, and trusted Lab Gruppen touring foundation exemplified by the iconic PLM series, but with an additional new powerful feature set: the ability to rationalize power allocation between channels to optimize performance. Now packaged in an extended 4-in, 4-out configuration together with twice the processing power via the latest version 6.3 Lake Controller release, plus industry-standard Dante® networking, the PLM 12K44 sets the benchmark for Powered Loudspeaker Management Systems.

The PLM 12K44 combines four channels of extremely powerful amplification with unrivalled signal processing and audio management. At the core of the system concept is the total integration of all devices – including networking, audio I/O, signal processing, amplifiers, power supply and connected mains supply – allowing complete control and monitoring of the entire platform, resulting in unique operational benefits.

Tech Specs

• Number of Channels: 4
• Power Class: Class TD
• Power rating: 2 x 3000W 2 Ohm, 4 x 3000W 2.67 Ohm, 4 x 3000W 4 Ohm, 4 x 1900W 8 Ohm, 4 x 950W 16 Ohm, 4 x 3000W Hi-Z 70V and 4 x 3000W Hi-Z 100V
• Inputs: 4 analog / 2 digital
• Outputs: 4 speakON
• Protection: Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection
• Rack Spaces: 2U
• Product Dimension: 483mm(W) x 424mm(D) x 88mm(H)
• Product Weight: 16.5 kg
• Packaging Dimension: N/A
• Packaging Weight: N/A
