IVA SiX-26eF adalah bukti komitmen IVA dalam membangunkan teknologi pasif termaju yang direka khusus untuk menangani isu gema melampau. Singkatan “eF” membawa maksud Echo Fighter (Melawan Gema) — pembesar suara pertama kami yang direka khas demi menyampaikan bunyi yang jelas dan mudah difahami di dalam ruang yang mencabar dari segi akustik. Direka untuk pemasangan di kawasan yang mudah bergema seperti masjid, gereja, ruang legar pusat beli-belah, dan bilik mesyuarat, SiX-26eF mempamerkan prestasi luar biasa sebagai pembesar suara fullrange aktif.
Reka bentuk fizikalnya yang fleksibel juga menjadikan ia sangat ideal untuk digunakan sebagai front fill, pembesar suara bawah balkoni, atau monitor pentas — hanya perlu putarkan bahagian horn untuk peletakan secara mendatar. IVA SiX-26eF adalah penyelesaian mutlak bagi ruang yang mementingkan kejelasan, kawalan, dan kualiti bunyi tinggi di kawasan yang mencabar dari segi akustik.
Ciri-ciri Utama:
- Cip pemprosesan berkualiti tinggi daripada Analog Devices SigmaDSP® chipset
- Kawalan hala tuju gelombang audio secara pasif yang direka khas untuk ruang yang mudah gema
- 5 custom tuned preset untuk kepelbagaian posisi pemasangan pembesar suara
- Bahagian horn boleh diputar untuk aplikasi front ll, bawah balkoni, dan monitor pentas
- Dibina dengan kabinet papan lapis yang direka untuk frekuensi low tuning
- Pilihan Grill Designer yang dijual berasingan untuk aplikasi di masjid dan gereja
Situasi Preset yang Dirangkumi:
- M1 Pemasangan di atas stand / Ruang Terbuka
Untuk Pemasangan di atas stand atau di ruang terbuka, di mana ‘boundary interference’ adalah minima.
- M2 Pemasangan Berhampiran Dinding
Mengimbangi gandaan frekuensi rendah (low-frequency gain) dan pantulan awal (early reflections) yang terhasil akibat pemasangan rapat pada satu dinding.
- M3 Pemasangan di Sudut Dinding
Potongan frekuensi rendah bagi mengurangkan gandaan bass yang ketara serta 'room mode excitation' yang sering berlaku pada penempatan di sudut ruang.
- M4 Mod Mendatar / Isian
Dioptimumkan untuk kegunaan sebagai front-fill, di bawah balkoni (under-balcony), atau diposisikan secara mendatar sebagai monitor pentas. Setup ini memerlukan ‘high-pass filtering’ atau ‘high-shelf filtering ’. Horn boleh diputarkan 90 darjah - Condong ke bawah (untuk bawah balkoni) atau Condong ke atas (untuk front-fill).
- M5 Fullrange Boost
Mod khusus yang menerapkan peningkatan frekuensi rendah untuk situasi yang memerlukan bass ekstra atau impak audio yang lebih bertenaga.
Bahasa Malaysia - English - 中文
The IVA SiX-26eF is a testament to IVA’s commitment to developing advanced passive technologies aimed at combating echo and excessive reverberation. The “eF” designation is the acronym of echo fighter — our first loudspeaker engineered specifically to deliver clear, intelligible sound in acoustically challenging venues. Designed for deployment in echo-prone spaces such as mosques, churches, shopping mall concourses, and meeting rooms, the SiX-26eF performs exceptionally as an active fullrange loudspeaker.
Its flexible form factor also makes it ideal for use as a front fill, under-balcony speaker, or stage monitor—simply rotate the horn for horizontal placement. The IVA SiX-26eF is the ultimate solution for venues seeking clarity, control, and high-quality sound in acousti cally demanding spaces.
Features:
- Utilizes the high quality Analog Device's SigmaDSP® chipset
- Passive waveguide control designed for echo and reverb prone spaces
- 5 custom tuned presets for variety of loudspeaker deployment
- Rotatable Horn for front fill, under balcony and stage wedge deployment
- Constructed with solid plywood cabinets designed for low tuning frequency
- Optional designer grille that sell separately for mosque and church
Preset Situations Covered:
- M1 Free Air / Stand Mount
For deployment on a stand or in open space, where boundary interference is minimal.
- M2 Near Wall Installation
Compensates for the low-frequency gain and early reflections introduced by a single adjacent wall.
- M3 Corner Installation
Applies the necessary low-frequency cuts to mitigate the significant bass buildup and room mode excitation common in corner placements.
- M4 Horizontal / Fill Mode
Optimized for use as front fill, under-balcony, or horizontally oriented as a stage monitor, often requiring specific high-pass filtering or high-shelves filtering.
Horn to be rotated 90° Bias downward (under balcony) or Bias upward (front fill).
- M5 Fullrange Boost
A specialized mode that applies a controlled low-frequency enhancement for situations demanding extra bass extension or impact.
Tech Specs
- Power Configuration: Bi-amped
- Transducer Low: 2 x 6.5” Woofer, 1.6” Voice Coil
- Transducer High: 1” Tweeter, 1” Voice Coil
- DSP: 24 bit 48 kHz SigmaDSP®
- Horn Coverage: Rotatable 80° H x 60° V, 10° bias downward vertically
- Frequency Response (+/- 3dB): 52 Hz – 15 kHz
- Crossover Frequency: Electronics at 1300 Hz
- Max SPL: 122 dB
- Power Rating: 300 Watt RMS 600 Watt Peak

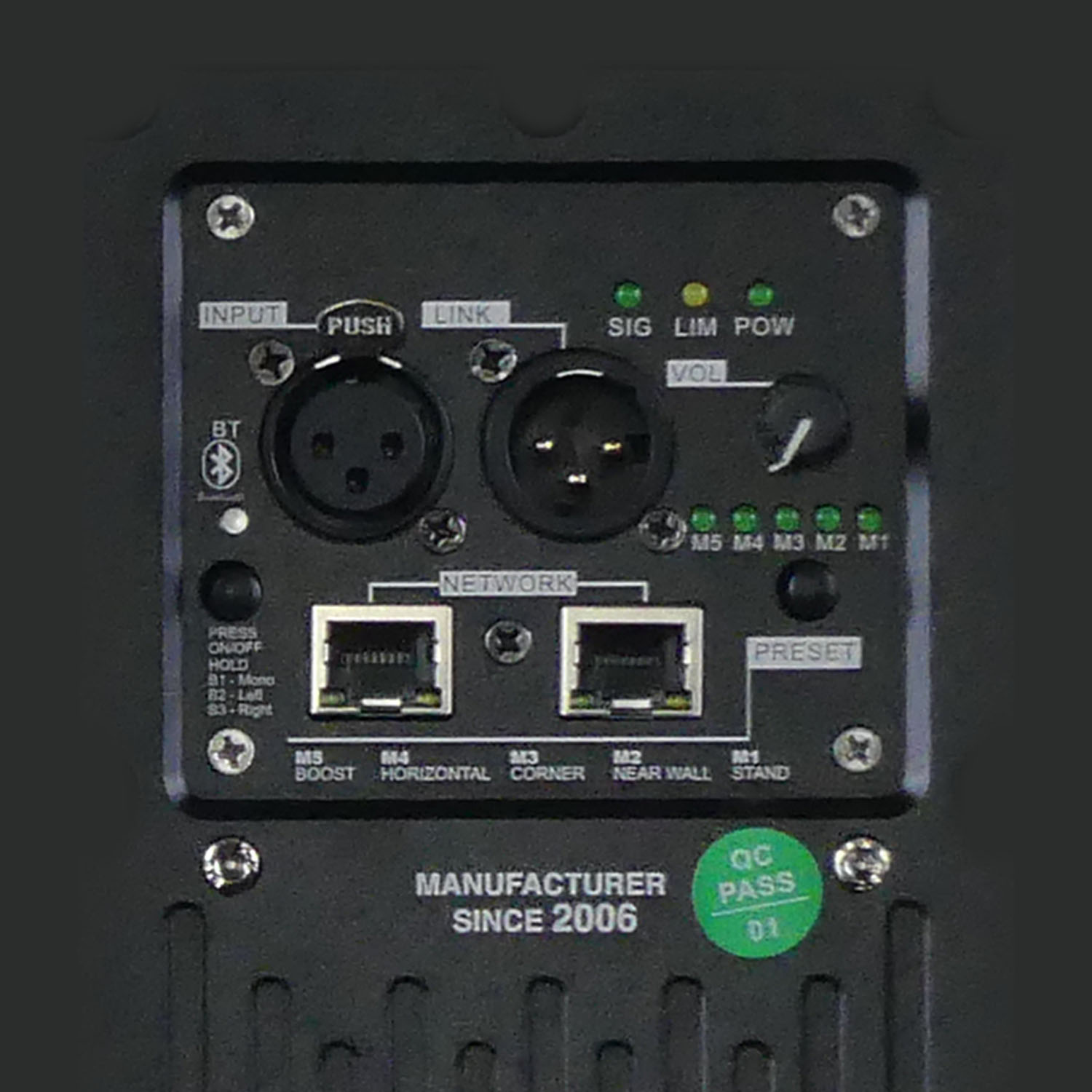

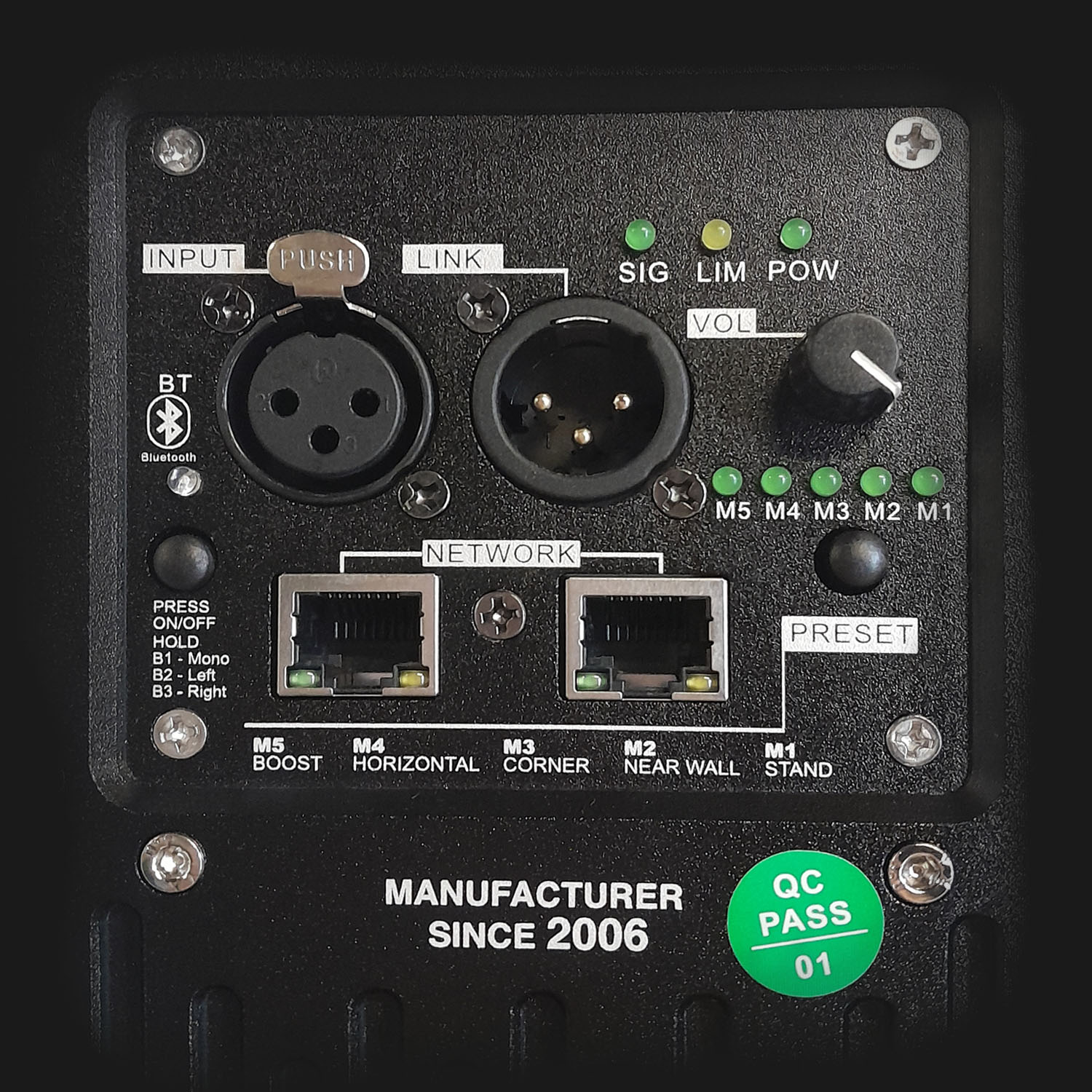

- Connectors: 1 x XLR In, 1 x XLR Out, 2 x RJ45, 1 x PowerCon In, 1 x Powercon Out
- External Control: Volume Control / Power ON / Preset Switch
- Electronics Protection: Thermal / Overload / DSP Limiter / DSP Compressor
- Power Supply: AC 230V, 50/60 Hz
- Enclosure Construction: Plywood Cabinet, Metal Grille, Handle-On Top
- Mounting Options: Pole Mount, Floor Wedge M8 Legs, 14 x M8 Fly Points
- Power Consumption: 300 Watt 1.5 Ampere
- Weight: 12.5 kg net, 14 kg (shipping)
- Dimensions (W x D x H): 230 x 267 x 550 mm 270 x 307 x 590 mm (carton)
SigmaDSP® it’s a registered trademark is protected by the US Patent and Trademark Office.
Passive Echo-Fighting Technology
The SiX-26eF is engineered for acoustically challenging spaces. Its smart design features a built-in 10° downward High-Frequency (HF) bias, which naturally directs sound toward the audience and away from reflective ceilings, even without mechanical tilting. This bias also improves near-field coverage. Combined with a tweeter-between-woofer configuration that tightens vertical mid-frequency dispersion, the SiX-26eF significantly controls mid and high frequencies—the core components of speech clarity—making it one of the most capable loudspeakers in its class for clear audio in highly reverberant environments.
