Description

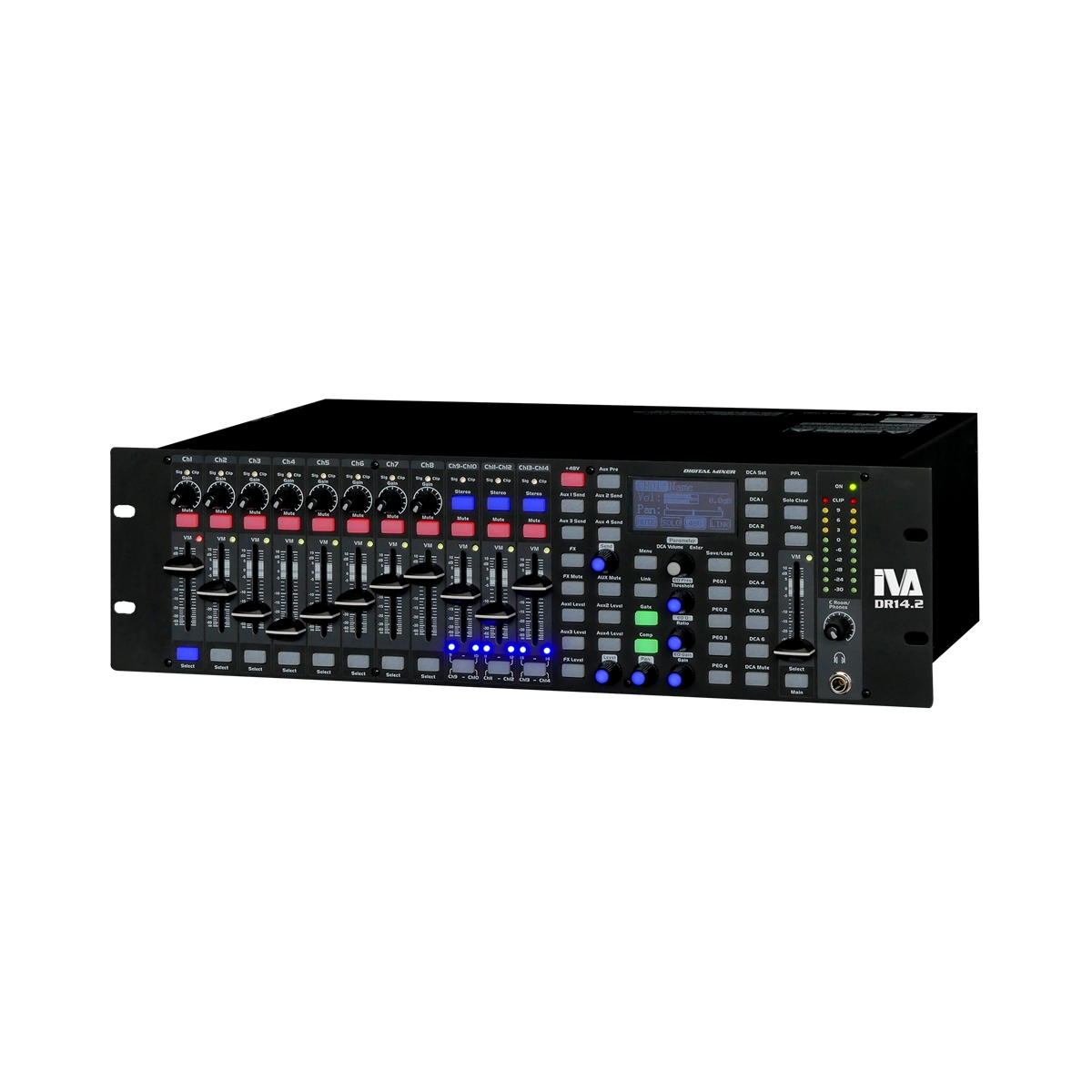

DR14.2 is IVA first step into the digital domain of audio mixer. This rack-mountable digital mixer is the culmination of years of IVA expertise in professional audio industry. This digital mixer provide 8 microphone inputs and 3 stereo inputs which is the most common and useful in most installation. It has one Main Output and 4 Aux output that enable ultra-flexible audio signal routing. It has one FX engine that provide high quality studio effect for audio enhancement. It’s crazy that so many DSP feature built-in this digital mixer. You name it, it have it. Parametric Equalizer, Graphic Equalizer, Low Pass Filter, High Pass Filter, Delay Compensation, Gate, Compressor, Ducker, Feedback Control (FBC), Automix and Digitally Controlled Amplifier (DCA).

DR14.2 unlike many small tablet-based digital mixer can work independently without the need of a tablet, smartphone and PC. Users and sound engineers can mix the audio at the front of mixer itself.  Rejoice to those who like to work remotely too! With in-built Ethernet port, user can easily add a WiFi router to the digital mixer and with Android app, IOS app and PC Window. All operation of the digital mixer can be accesses and controlled remotely. The ultimate feature of DR14.2 is the password locking capability. With 4 digit number, all the setting can be forever saved without the concern of external meddling. The encrypted password feature is so good that even power cycle on and off the unit itself does not overwrite or unlock the password. For installation at the venue without operator, this is a life saver feature.

Tech Specs

• Inputs: 8 x XLR or 8 x 1/4", 3 x stereo 1/4”
• Phantom Power: 8 Channels
• Outputs: 2 x XLR Main
• Busses/Groups: 6 total (4 x Aux, stereo Main LR)
• Data I/O: 1 x Ethernet
• I/O Expansion Slots: 1 x slot DANTE network (optional and not included)
• Headphones: 1
• A/D Resolution: 24 bit/48kHz
• EQ Bands: 4 band EQ, 1 LPF, 1 HPF at all inputs and outputs
• Effects: 1 FX Engine
• GEQ: 31 band in all Outputs
• Signal Processing: Gate, Compressor
• Intelligent Feature: Automix, Ducker, Feedback Controller (FBC)
• DAW Integration: Via DANTE Virtual Soundcard (not included)
• Screen: 128 * 64 line dot matrix monochrome LCD screen

Download

1. Product Catalogue
2. Android Remote App
3. IOS Remote App
4. Window Remote Software
