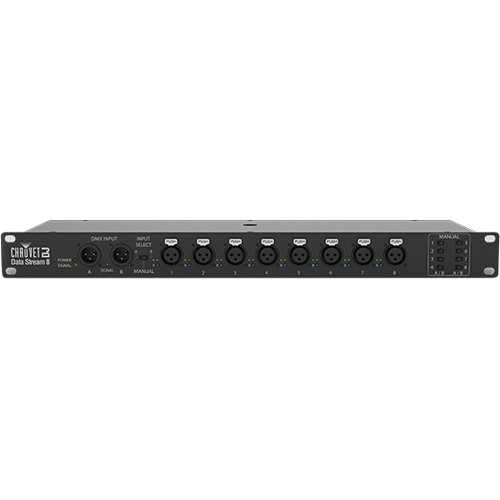

Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.

Specifications

• DMX Connectors:3-pin XLR
• Rackmount:1U
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:2 W, 0.04 A @ 120 V, 60 Hz
  2 W, 0.03 A @ 230 V, 50 Hz
• Weight:4.6 lbs (2.1 kg)
• Size:19 x 5.2 x 1.7 in (483 x 132 x 44 mm)
• Approvals:CE
