LCM Series
Innovative Era of the Whole Cabinet
Indoor commercial display featuring 4,200Hz high refresh rate for smooth visual effects and highly integrated design for quick installation & maintenance.
- Exclusive system card：
Power supply, hub, receiving card 3-in-1, exclusive design of LAMPRO. - Ultra-light and thin
The maximum thickness is 52.2mm
The thickness of the screen is 28.2mm
The weight of the cabinet is only 2.2kg
- High Brightness ,High Contrast，High Refresh
Standard brightness ≥ 500nit, refresh rate up to 5000:1 ,
Standard 3840Hz. - Efficient Installation,Front Maintenance
The cabinet can directly magnetically attract the steel
structure,Quickly complete the construction of the large screen, Greatly improve
Higher Strength, Higher Flatness
High-strength plastic bottom case to prevent high temperatures & deformation, ensuring high flatness

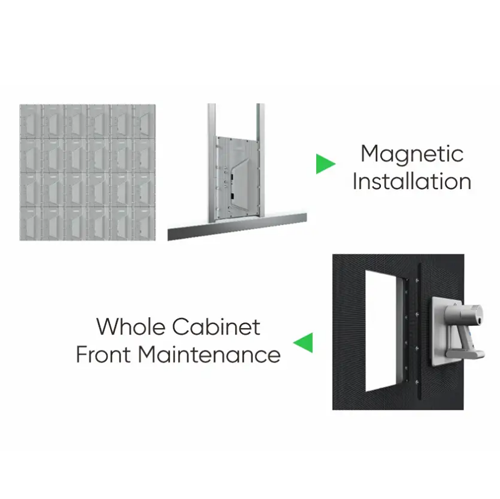

Easy-handling Installation and Maintenance
- Installation efficiency increased by 3 times, easy to build a large screen
- Fast front maintenance of the whole cabinet with the vacuum maintenance tool

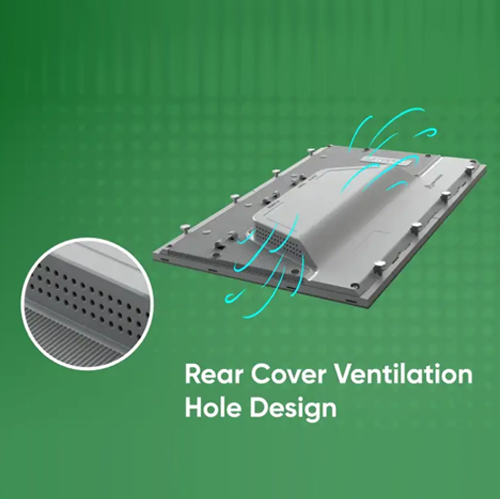

Efficient Heat Dissipation
The passive heat dissipation area is increased by 10%, and the temperature rise is reduced by 5℃ compared with similar products

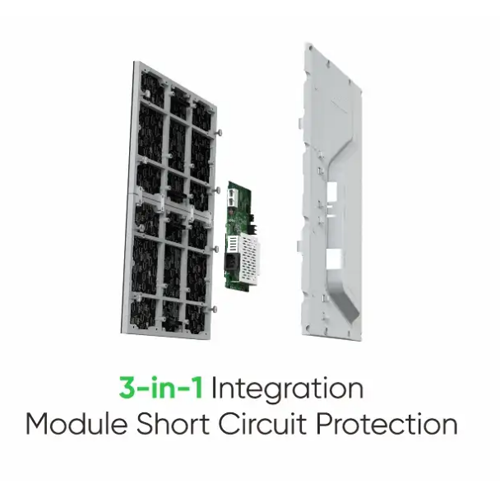

Highly Integrated Design, High Safety Level
- Modular design and no wire interference for more stable operation
- Current-limiting circuits to prevent abnormal overcurrent from causing damage to the lamp board

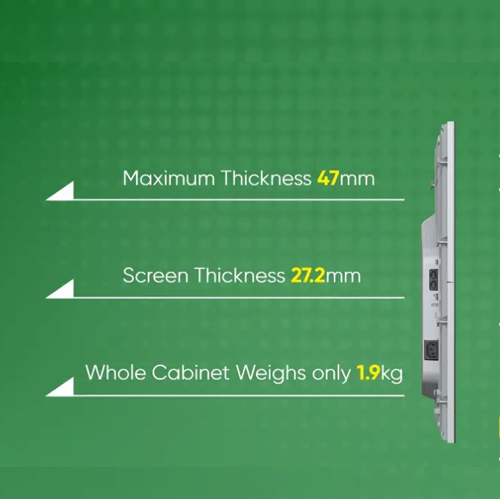

Ultra Slim and Lightweight
Designed for quick and effortless operation

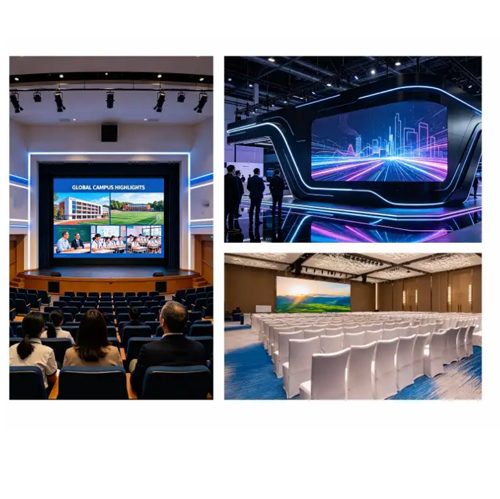

Application Scenarios
Widely applied for meeting rooms, multimedia classrooms, school auditoriums, digital exhibitions, etc.
Lampro LCM Series LED Wall |
Traditional Module LED Wall |
|
| Type | All-In-One Cabinet | Module + Receiving Card + Power Supply |
| Structure | Pre-assembled in factory (include frame, modules, PSU & Receiving Card) | Separate on-site installation – Module, PSU & Receiving Card mounted on customize steel structur |
| Hazards | Low Risk – factory wiring & cabinet frame reduce chances of faults | High Risk – Loose wiring, poor grounding, weak frame and heat buildup may cause fire, shock, or collapse if not installed properly |
| Flatness & Alignment | Good uniformity – cabinet frame ensure consistency | Challenging to achieve uniformity – depends on installer skill & frame precision |
| Reliability | High – factory assembled, pre-tested and less on-site wiring issues | Average – more dependent on installation quality and frame precision |
| Installation | Fast & Easy | Slow and Tedious – module-by-module and every component |
