100 Watt 2-Channel Acoustic Amplifier with Vocal Processing, Looper, Tannoy Dual Concentric Speaker, Top Firing Tweeter

100 watt 2-channel acoustic amplifier with vocal processing looper tannoy dual concentric speaker top firing tweeter

HARMONY V100

Whatsapp for enquiry

100 Watt 2-Channel Acoustic Amplifier with Vocal Processing, Looper, Tannoy Dual Concentric Speaker, Top Firing Tweeter

HARMONY V100

Whatsapp for enquiry

All In One Performance Companion
The Harmony V100 Acoustic Amplifier is crammed full of features and innovations that can help you weave intricate, evolving sounds at home or in clubs and halls. Maximize your audio potential to capture attention and hold it with an array of fascinating vocal and guitar effects and looping in an easy-to-carry processor and amplifier system.

Immersive Guitar sound
Leave your pedals at home. A suite of sweet guitar effects that would normally require a large pedal board is included. There’s a fast, accurate Tuner, BodyRez to improve the feel and tone of your undersaddle pickup, 3 band EQ and separate Chorus, Reverb and Echo with their own styles and mix controls. All you add is a guitar and your groove.

Stunning Vocals
Everybody knows the main link to an audience is vocals and TC Helicon’s studio-quality vocal processing lets your voice shine. With Adaptive Tone for instant “producer polish”, transparent pitch correction, two additional virtual Harmony voices and the lush expansiveness of Reverb and Echo, your voice will excite like never before.

Audio inputs

Guitar input	¼" TRS balanced/XLR combo
Input impedance	2 MΩ balanced/1 MΩ unbalanced
Microphone input	¼ " TRS balanced/XLR combo
Input impedance	XLR: 2.9kΩ balanced; ¼" 10kΩ TRS balanced/5k TS unbalanced
Aux input	3.5 mm TRS stereo
Input impedance	19 kΩ

Audio outputs

Guitar/right out and Mic/left out	XLR balanced, female
Output impedance	400 Ω
Max. output level	0 dBu
Switches	DI, FX, Mix
Headphones out	3.5 mm TRS stereo
Output impedance	10 Ω
Max. output level	8 dBu

Vocal section controls

Knobs	Volume (1 to 10) Adaptive tone (off to max) Correction (off to max) Harmony selector, 8 position Reverb (off, room, club, hall) Echo (off, tape, digital, slap)
Switches	Phantom on/of Talk on/of Anti-feedback on/off Harmony enable/disable
LEDs	Phantom (red), Reverb (green), Echo (green), Harmony voice (green, 8 selections
Backlit switches	Talk (green), anti-feedback (green, or blue when operating), harmony (green)

Guitar section controls

Knobs	Volume (0 to 10) Bass, shelving (-12 to 12 dB) Mid, peaking (-12 to 12 dB) Treble, shelving (-12 to 12 dB) Chorus (detune, silk, corona) Reverb (off, room, club, hall) Echo (off, tape, digital, slap)
Switches	Mute on/off Anti-feedback on/off Bodyrez off, Bodyrez-1, Bodyrez-2 Bodyrez-3 Harmony enable/disable
Display	Tuner note 8-segment, red
LEDs	Chorus (green), reverb (green), echo (green) Tuner sharp/flat/in-tune (red)
Backlit switches	Mute (red), anti-feedback (green, or blue when operating), bodyrez (red, green, blue selections)

Footswitchable controls

Microphone Section	Talk on/off Harmony on/off at the current setting Reverb on/off Echo on/off
Guitar section	Mute on/off Chorus on/off Reverb on/off Echo on/off Harmony on/off at a selected setting
Looper section	Tap Tempo Play/record Stop
LEDs	Green when footswitch engaged, red when recording

Looper controls

Knobs	Level (0 to 10)
Switches	Voice/all/guitar Tap tempo Play/record Stop
Backlit switches	Tap tempo (flash red at tempo), play/record (green play, red record), stop (red)

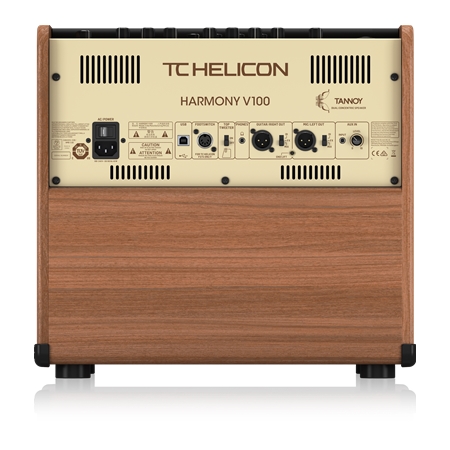

Rear panel section

Connections	AC input IEC USB B type Foot switch, 5-pin DIN (for FST4 only) Guitar/right out, XLR male Mic/left out, XLR male Aux in, 3.5 mm
Switches	AC power on/off toggle Top tweeter on/off Guitar/right out, DI/FX/MIX selector Mic/left out, DI/FX/MIX selector Ground lift, XLR audio
Knobs	Aux input level (0-10)

USB

Type	Class compliant USB 2.0, type B
Supported Operating Systems	Windows 7 or higher Mac OS X 10.6.8 or higher
Windows driver	Required driver is supplied
Audio input and output	2 channels, 24 bit, 48kHz

Amplifier

Output power	110 W
Type	Class- D
Protection	Short circuit, thermal

Loudspeakers

Type	10" dual-concentric, Tannoy
Impedance	4 Ω
Power handling	400 W
Top tweeter (switchable on/off)	1"
Impedance	4 Ω
Overall frequency response	80 Hz - 20 kHz (+/- 3 dB) 46 Hz - 24 kHz (- 10 dB)
Maximum SPL	118 dbSPL
