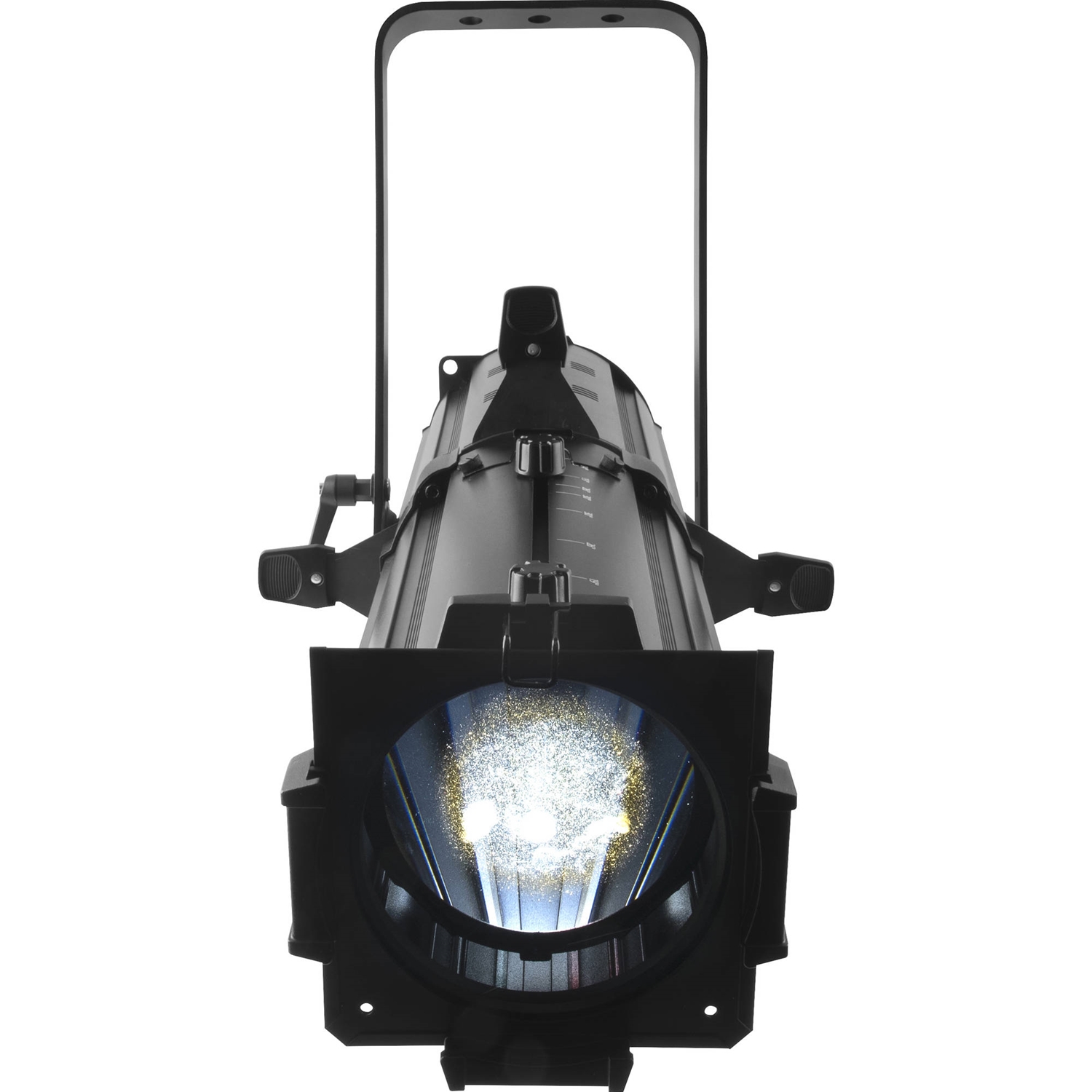

EVE E100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. It’s designed for mobile and installation applications. This versatile fixture works with metal or glass gobos to create incredible gobo or pattern details. The manual zoom and framing shutters make it simple to control beams.

Specifications

• DMX Connectors:3-pin XLR
• Light Source:1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
• Strobe Rate:0 to 30 Hz
• Zoom Angle:(manual): 14° to 30°
• Illuminance:(14°): 15,100 lux @ 2 m; (30°): 3,800 lux @ 2 m; (14°): 3,238 lux @ 5 m; (30°): 829 lux @ 5 m
• Power Linking:9 units @ 120 V; 16 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:106 W, 0.9 A @ 120 V, 60 Hz; 103 W, 0.5 A @ 230 V, 50 Hz
• Gobo Size:M (66 mm outside, 48 mm image, 2 mm max thickness)
• Weight:12.6 lb (5.7 kg)
• Size:24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
• Approvals:CE, MET
• CRI: 80
• Color Temperature: 3,500 K
• Accessory Holder/Gel Frame Size: 6.3 x 6.3 in (160 x 160 mm)/6.24 x 6.24 in (158.5 x 158.5 mm)
